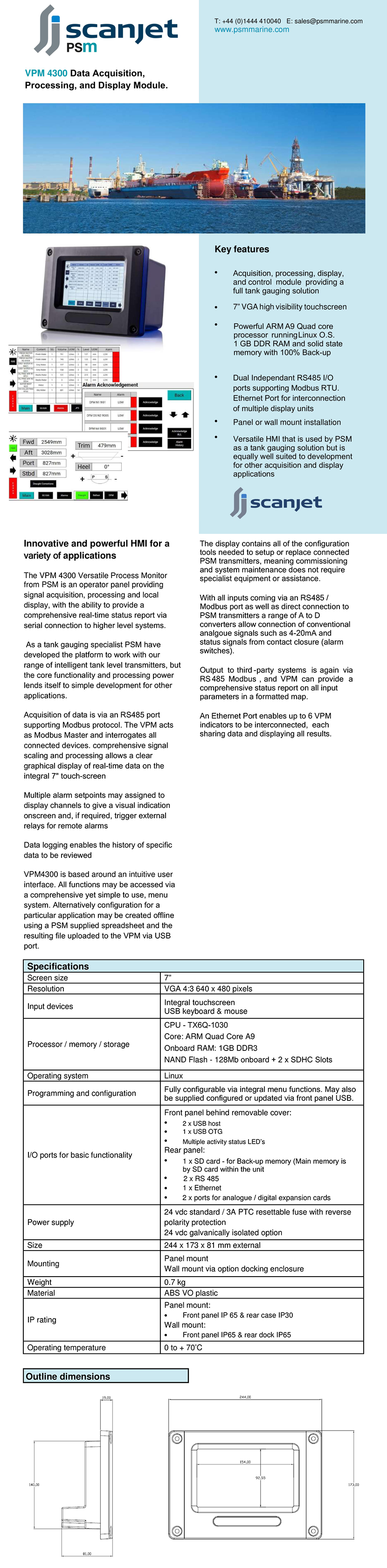

多功能液位信號采集處理監測器 |
主要功能: |
采集/處理/顯示/控制 |
應用場景: |
液位監測/其他 |
顯示標準: |
VGA |
屏幕尺寸: |
7 |
數據可否回溯: |
可回溯 |
安裝方式: |
面板/壁掛 |
供電類型: |
24VDC, 3A |
供電保護: |
PTC resettable fuse with reversepolarity protection; With galvanically isolated option |
操作系統: |
Linux |
交互類型: |
Touchscreen; USB keyboard & mouse |
監測時效: |
Real-time |
報警類型: |
Visual indiction onscreen; External trigger for remote alarm |
調試配置方式: |
Integral menu functions;Front panel USB |
性能亮點: |
A simple system to use with comprehensive functions; Easy to finish commissioning and system maintenance; Up to 6 VPM indicators can respectively share data and display all results from the system |
主要材質: |
ABS VO plastic |
防護等級: |
Front panel IP 65 & rear case IP30(Panel mount);Front panel IP65 & rear dock IP65(Wall mount) |
工作溫度: |
0 to + 70’C |
尺寸: |
244 x 173 x 81 mm external |
重量: |
0.7 kg |
|
|
